Select Electric Strip Heater Capacity
Select Electric Strip Heater Type
From $980.40
Original: $3,268.00
-70%Pioneer® Vertex™ 24,000 BTU 20 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump—
$3,268.00
$980.40The Story
Summary
- High Efficiency Vertex Ducted Central Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 20 SEER2 / 13.3 EER2 efficiency
- Heating capacity: 24,000 BTU/H with 9.4 HSPF2 / 2.1 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Communicating system with dedicated signal transmission
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 13,500~31,400 BTU/h
- Cooling SEER2: 20.0 BTU/W.h
- Cooling EER2: 13.3 BTU/W.h
- Heating Rated Capacity: 24,000 BTU/h
- Heating Capacity Range: 10,200~35,900 BTU/h
- Heating HSPF2 (Region IV): 9.4 BTU/W.h
- Heating C.O.P.2 (5°F): 2.1 W/W
- Refrigerant Type: R454b
- AHRI Reference: 217048497
-

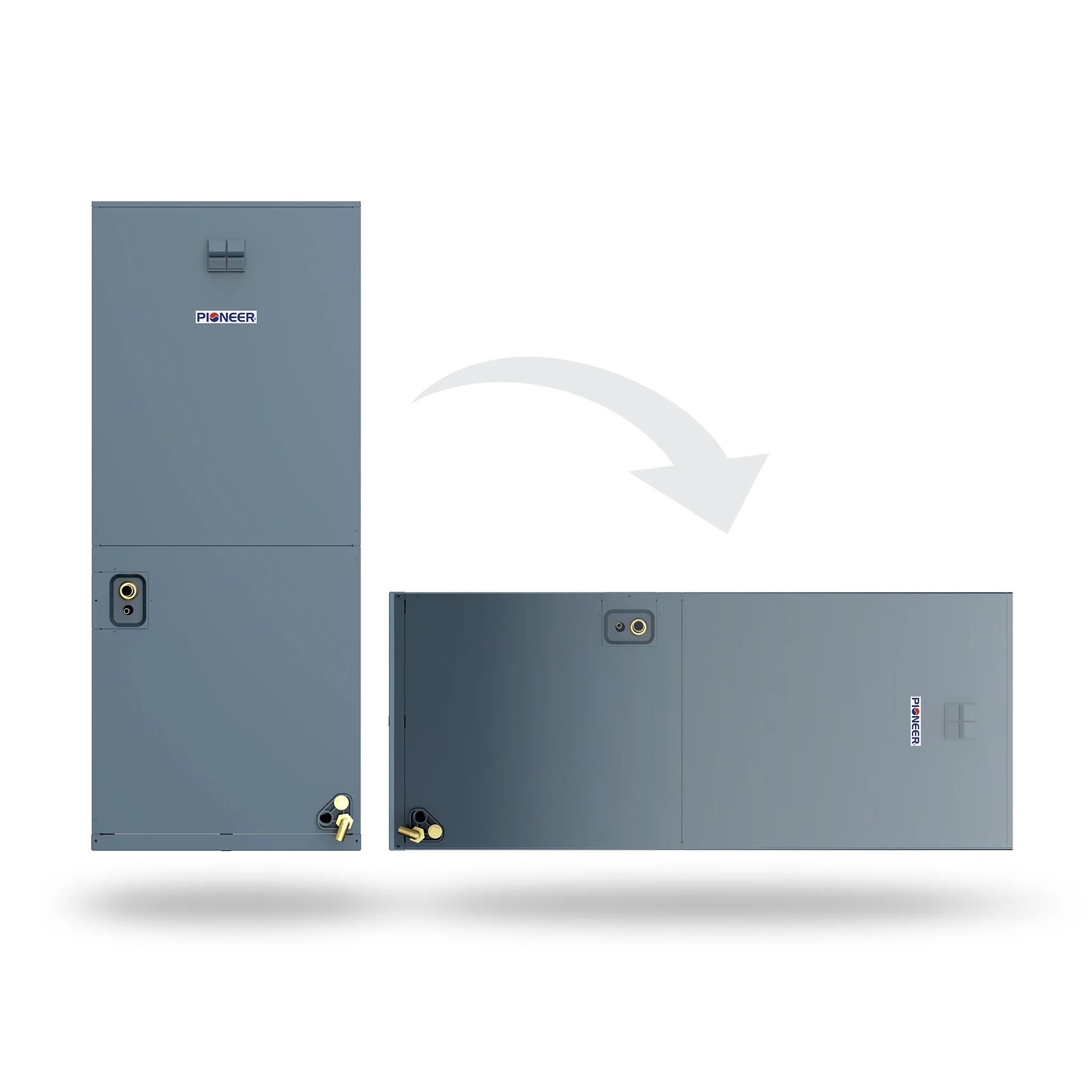

Air Handler
- Part Number: DC024GCSICDHRT
- Air Flow (Hi/Lo): 690 / 600 CFM
- Sound Level (Hi/Lo): 51 / 48 dB(A)
- Product Dimensions (WDH): 19"-5/8 x 22" x 45"-3/4 Inches
- Carton Dimensions (WDH): 22"-7/8 x 25"-5/8 x 47"-5/8 Inches
- Net / Gross Weight: 130 / 143 lbs
-

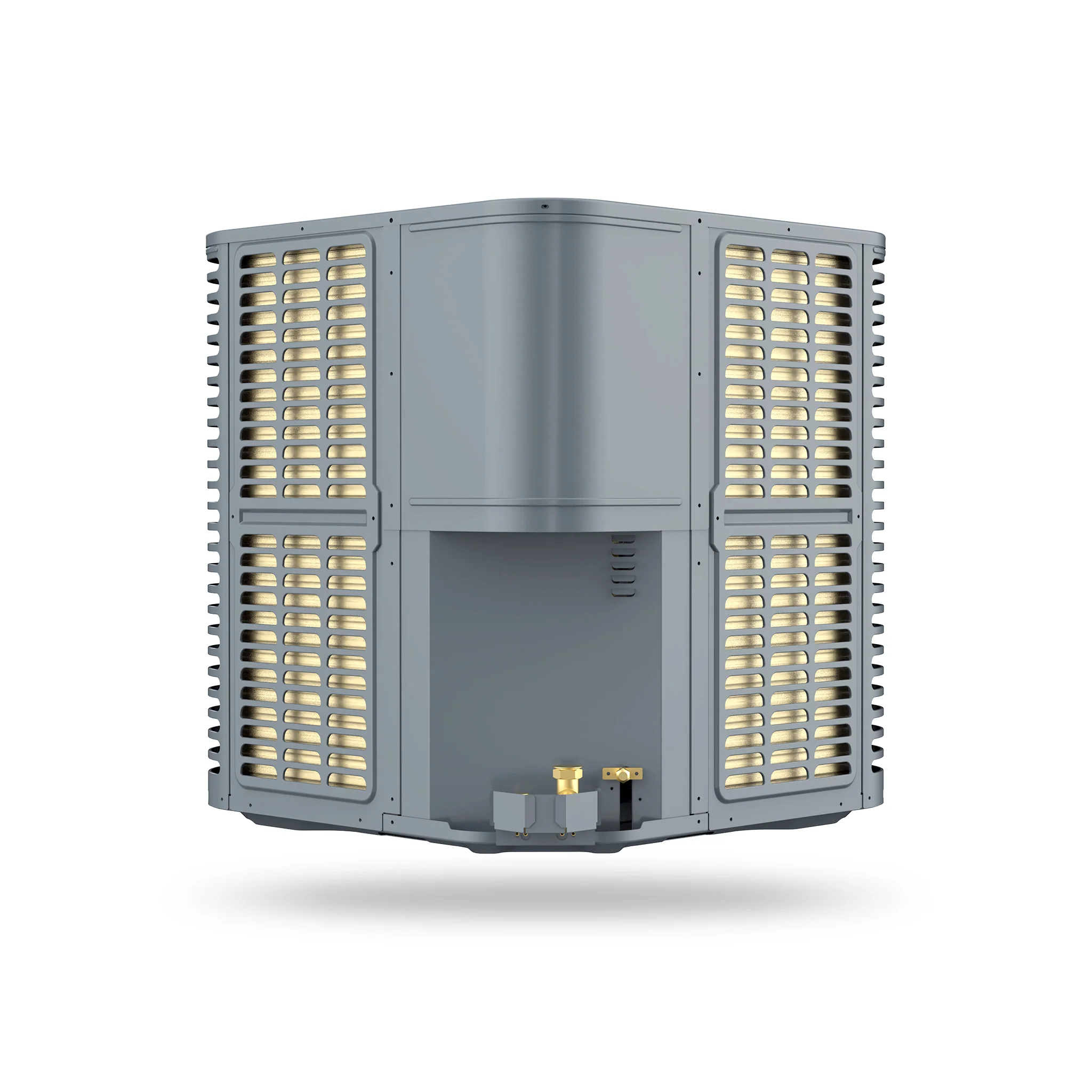

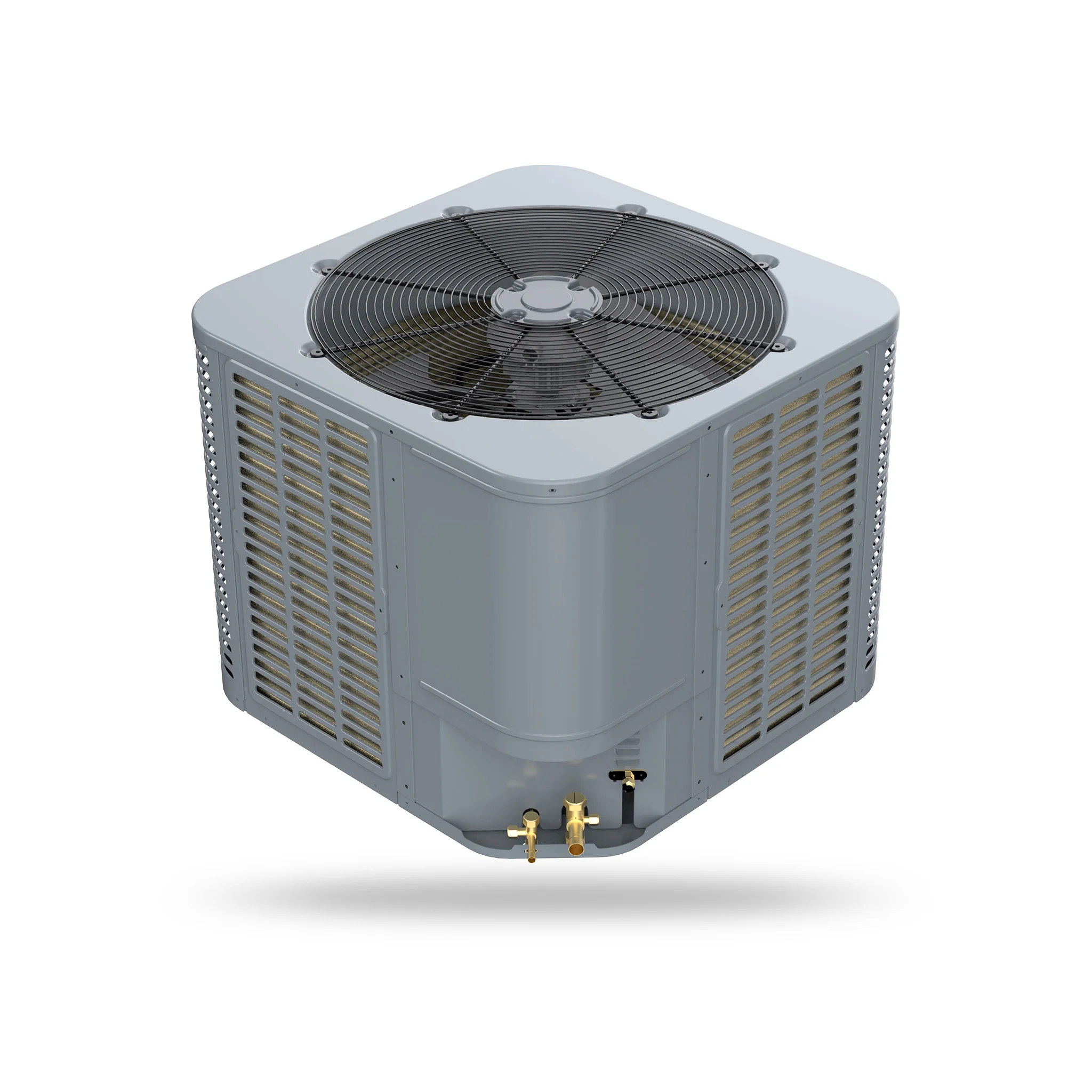

Outdoor Unit
- Part Number: YD2436GCSI18RD
- Breaker Needed: 15A (double-pole)
- Sound Level: 76 dB(A)
- Net Dimensions (WDH): 29"-1/8 x 29"-1/8 x 25" Inches
- Carton Dimensions (WDH): 30" x 30" x 26" Inches
- Net / Gross Weight: 137 / 146 lbs
Dimension Chart
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Summary
- High Efficiency Vertex Ducted Central Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 20 SEER2 / 13.3 EER2 efficiency
- Heating capacity: 24,000 BTU/H with 9.4 HSPF2 / 2.1 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Communicating system with dedicated signal transmission
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 13,500~31,400 BTU/h
- Cooling SEER2: 20.0 BTU/W.h
- Cooling EER2: 13.3 BTU/W.h
- Heating Rated Capacity: 24,000 BTU/h
- Heating Capacity Range: 10,200~35,900 BTU/h
- Heating HSPF2 (Region IV): 9.4 BTU/W.h
- Heating C.O.P.2 (5°F): 2.1 W/W
- Refrigerant Type: R454b
- AHRI Reference: 217048497
-
Air Handler
- Part Number: DC024GCSICDHRT
- Air Flow (Hi/Lo): 690 / 600 CFM
- Sound Level (Hi/Lo): 51 / 48 dB(A)
- Product Dimensions (WDH): 19"-5/8 x 22" x 45"-3/4 Inches
- Carton Dimensions (WDH): 22"-7/8 x 25"-5/8 x 47"-5/8 Inches
- Net / Gross Weight: 130 / 143 lbs
-
Outdoor Unit
- Part Number: YD2436GCSI18RD
- Breaker Needed: 15A (double-pole)
- Sound Level: 76 dB(A)
- Net Dimensions (WDH): 29"-1/8 x 29"-1/8 x 25" Inches
- Carton Dimensions (WDH): 30" x 30" x 26" Inches
- Net / Gross Weight: 137 / 146 lbs
