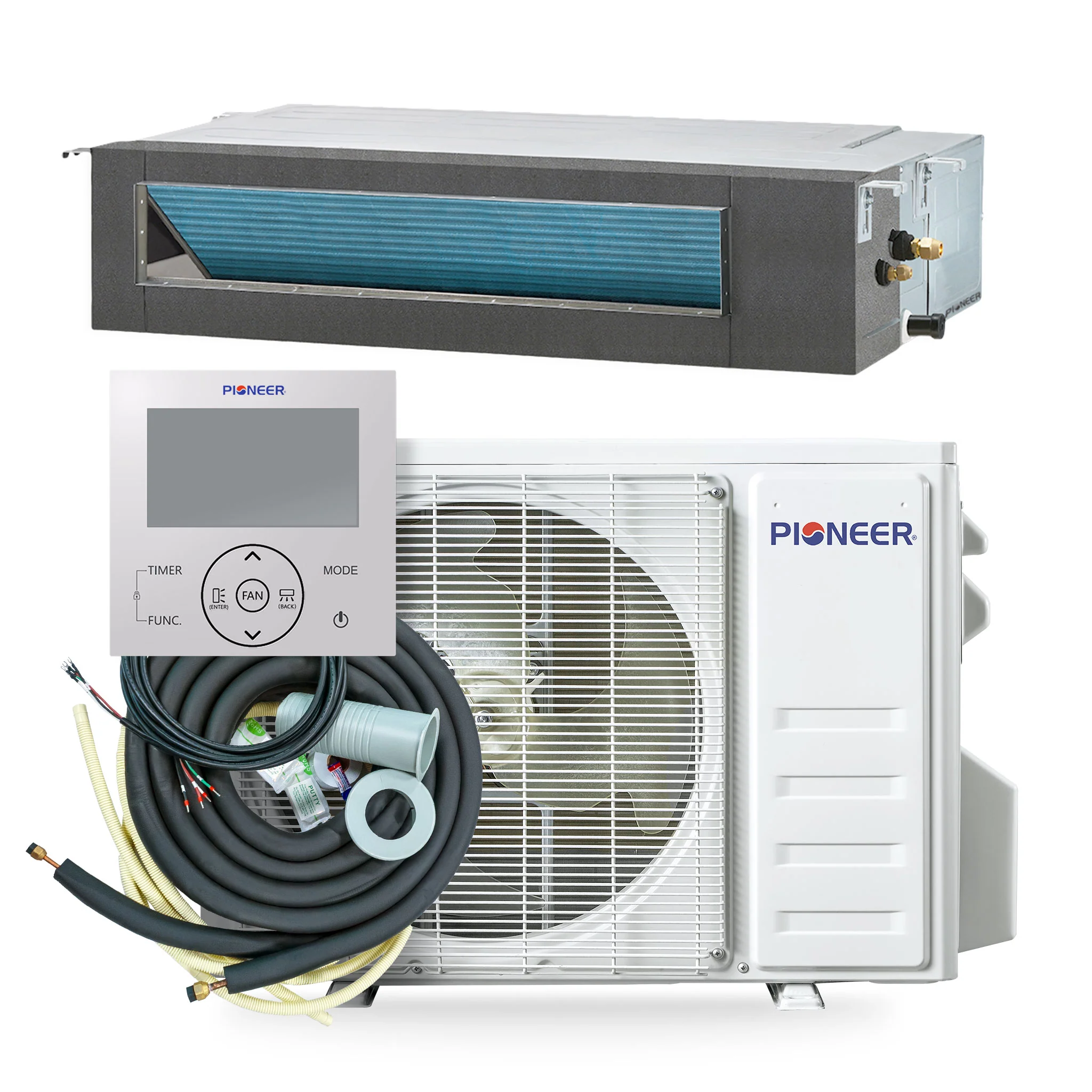

Select Include System Installation Kit
Select Installation Kit Length
From $500.40
Original: $1,668.00

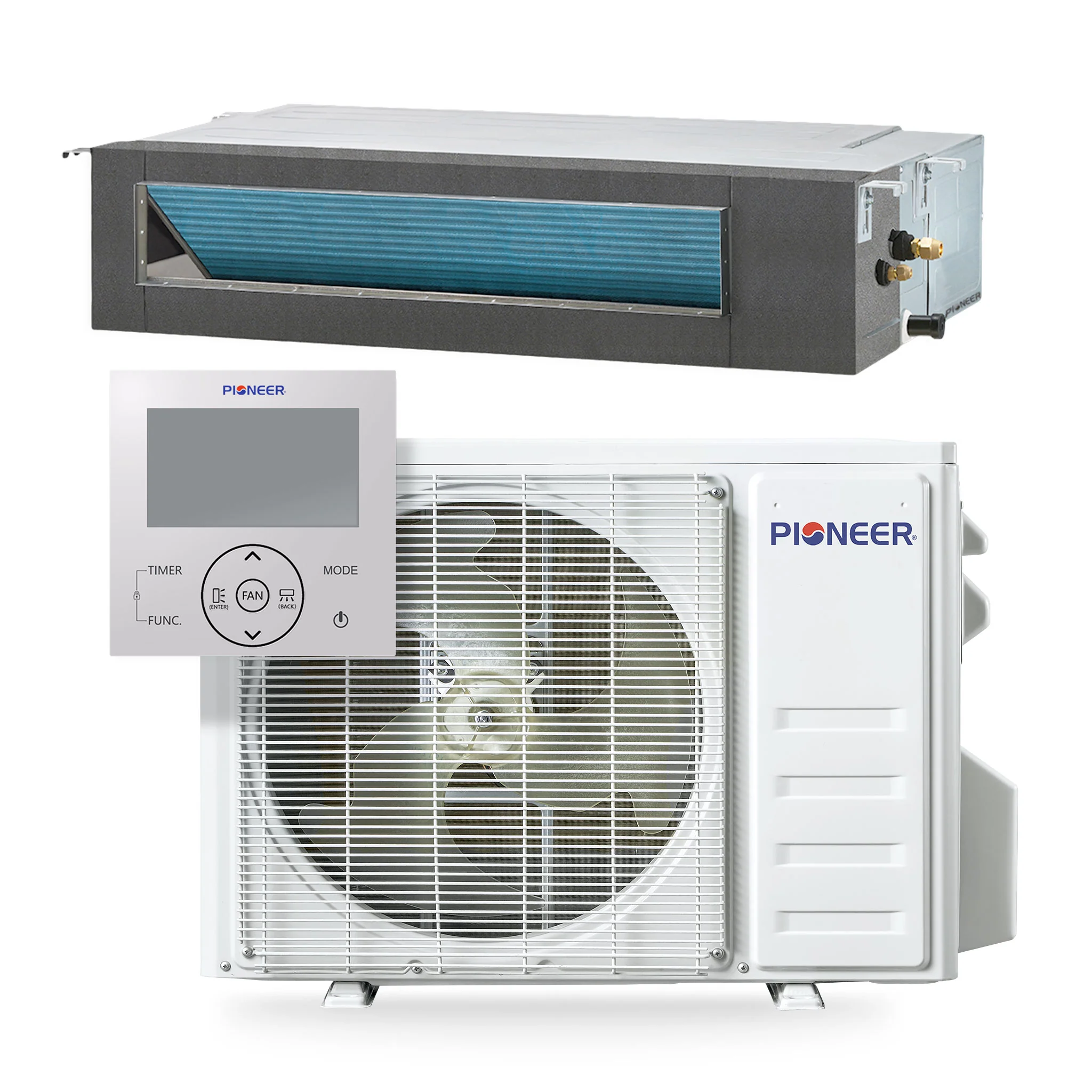

-70%Pioneer® Quantum Ultra™ 17,000 BTU 20.3 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set—
$1,668.00
$500.40The Story
Summary
- High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
- Cooling capacity: 17,000 BTU/H with 20.3 SEER2 / 11 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 10 HSPF2 / 2.8 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

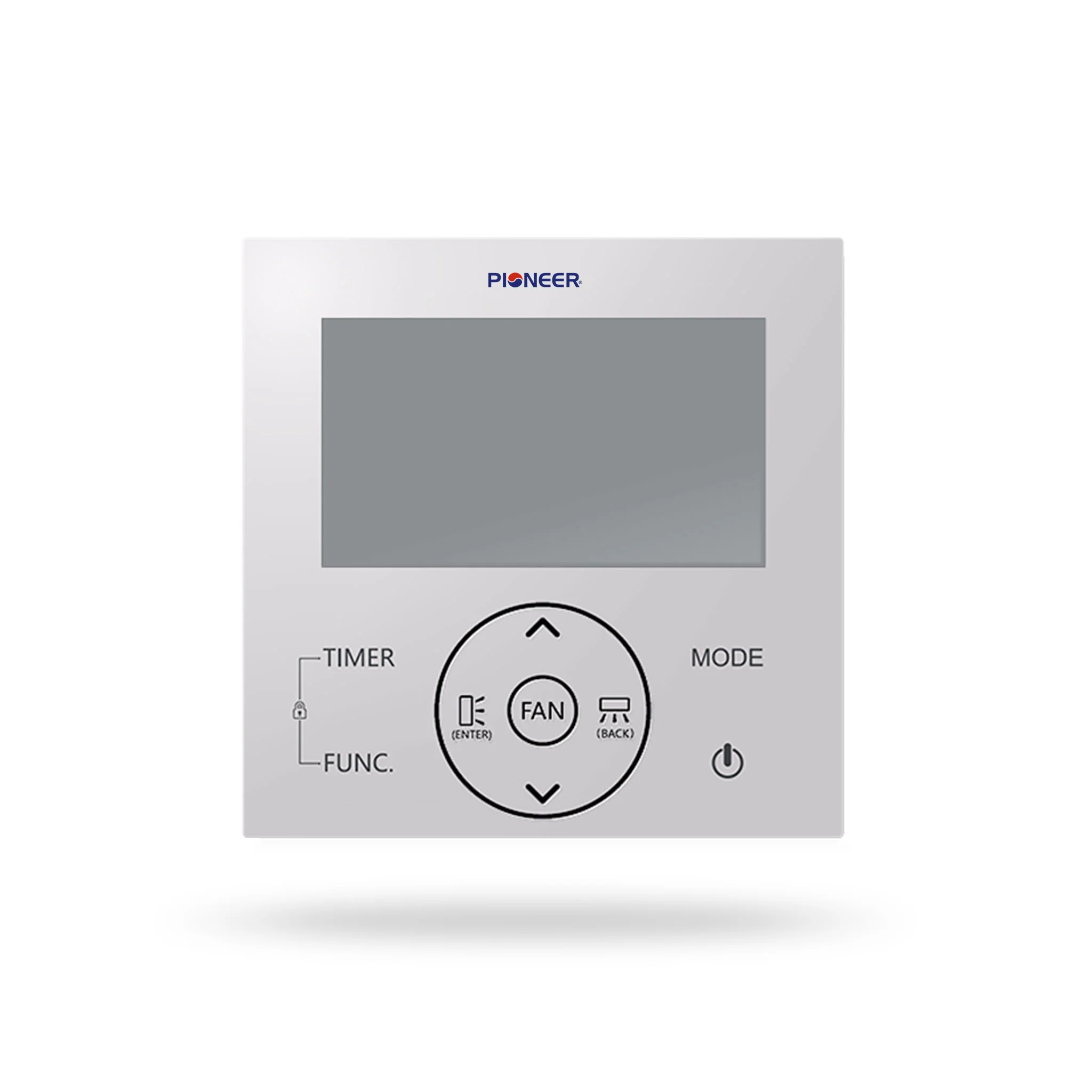

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 17,000 BTU/h
- Cooling Capacity Range: 6,000~19,400 BTU/h
- Cooling SEER2: 20.3 BTU/W.h
- Cooling EER2: 11.0 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 4,000~21,400 BTU/h
- Heating HSPF2 (Region IV/V): 10.0 / 9.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.8 / 1.8 W/W
- Refrigerant Type: R454b
- Suitable Area: 500~750 sq ft
- AHRI Reference: 217048764
-
Indoor Unit
- Part Number: RT018GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 426 / 370 / 300 / 283 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 41 / 38 / 36 dB(A)
- Product Dimensions (WDH): 35"-1/2 x 19"-1/4 x 7"-7/8 Inches
- Carton Dimensions (WDH): 44"-1/8 x 21"-7/8 x 9"-7/8 Inches
- Net / Gross Weight: 39.7 / 46.3 lbs
-

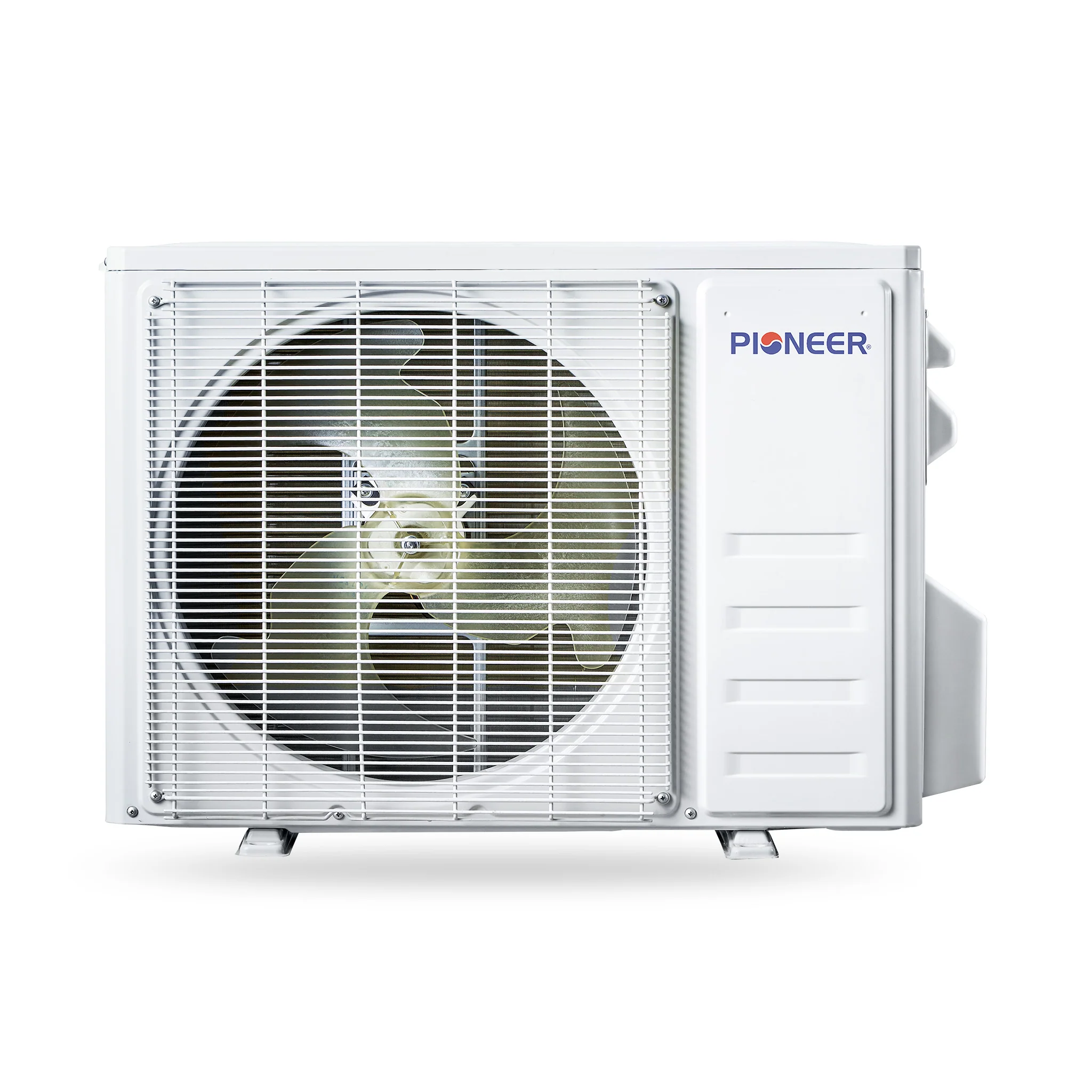

Outdoor Unit
- Part Number: YN018GLSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 53 dB(A)
- Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
- Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
- Net / Gross Weight: 90.4 / 97.0 lbs
Dimension Chart
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Summary
- High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
- Cooling capacity: 17,000 BTU/H with 20.3 SEER2 / 11 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 10 HSPF2 / 2.8 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 17,000 BTU/h
- Cooling Capacity Range: 6,000~19,400 BTU/h
- Cooling SEER2: 20.3 BTU/W.h
- Cooling EER2: 11.0 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 4,000~21,400 BTU/h
- Heating HSPF2 (Region IV/V): 10.0 / 9.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.8 / 1.8 W/W
- Refrigerant Type: R454b
- Suitable Area: 500~750 sq ft
- AHRI Reference: 217048764
-
Indoor Unit
- Part Number: RT018GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 426 / 370 / 300 / 283 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 41 / 38 / 36 dB(A)
- Product Dimensions (WDH): 35"-1/2 x 19"-1/4 x 7"-7/8 Inches
- Carton Dimensions (WDH): 44"-1/8 x 21"-7/8 x 9"-7/8 Inches
- Net / Gross Weight: 39.7 / 46.3 lbs
-
Outdoor Unit
- Part Number: YN018GLSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 53 dB(A)
- Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
- Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
- Net / Gross Weight: 90.4 / 97.0 lbs
