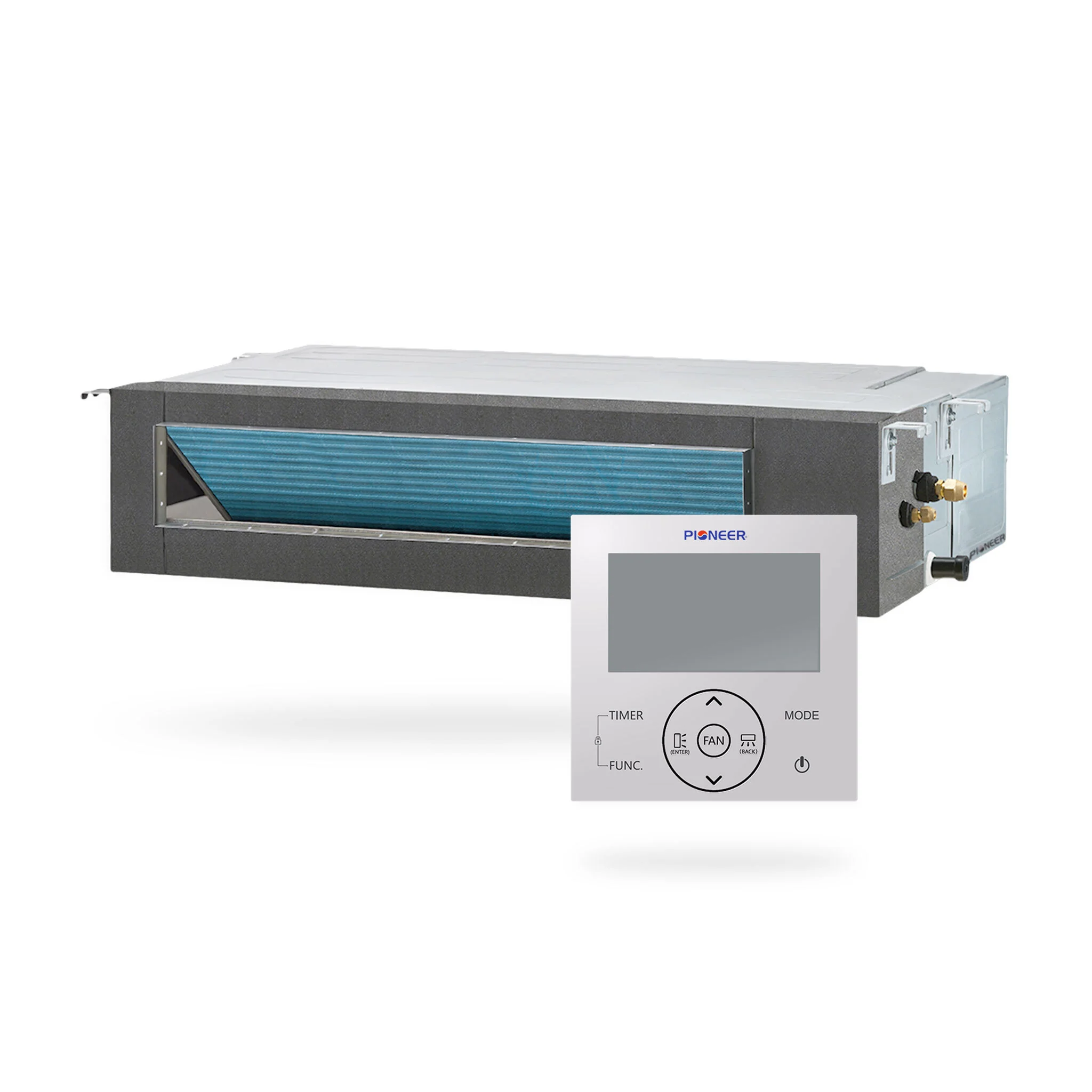

Pioneer® Multi Zone 12,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Part Number: RT012GLSILCFHG
• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• Suitable Area: 350~500 sq ft
• Air Flow (Turbo/Hi/Med/Lo/Mute): 360 / 330 / 270 / 210 / 180 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 41 / 39 dB(A)
• Product Dimensions (WDH): 27"-1/2 x 19"-1/4 x 7"-7/8 Inches
• Carton Dimensions (WDH): 35"-1/2 x 21"-7/8 x 9"-7/8 Inches
• Net / Gross Weight: 33.1 / 40.8 lbs

Compatibility

• Dual (2) Zone Condenser: YN020GLSI24M2G
• Triple (3) Zone Condenser: YN030GLSI24M3G
• Quad (4) Zone Condenser: YN040GLSI24M4G
• Quint (5) Zone Condenser: YN050GLSI24M5G

Manuals & Documents

• Technical Brochure

• User & Installation Manual

What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty
